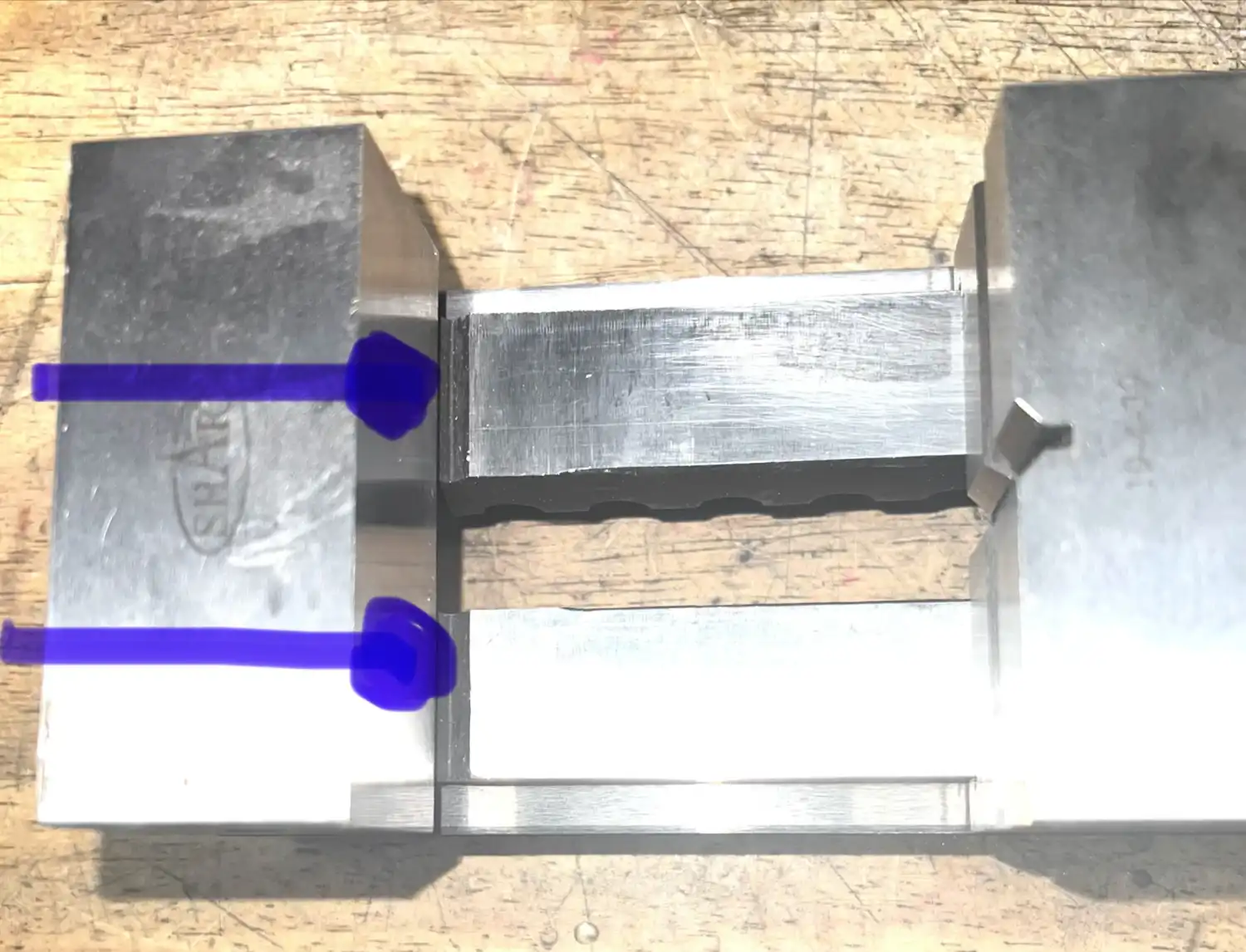

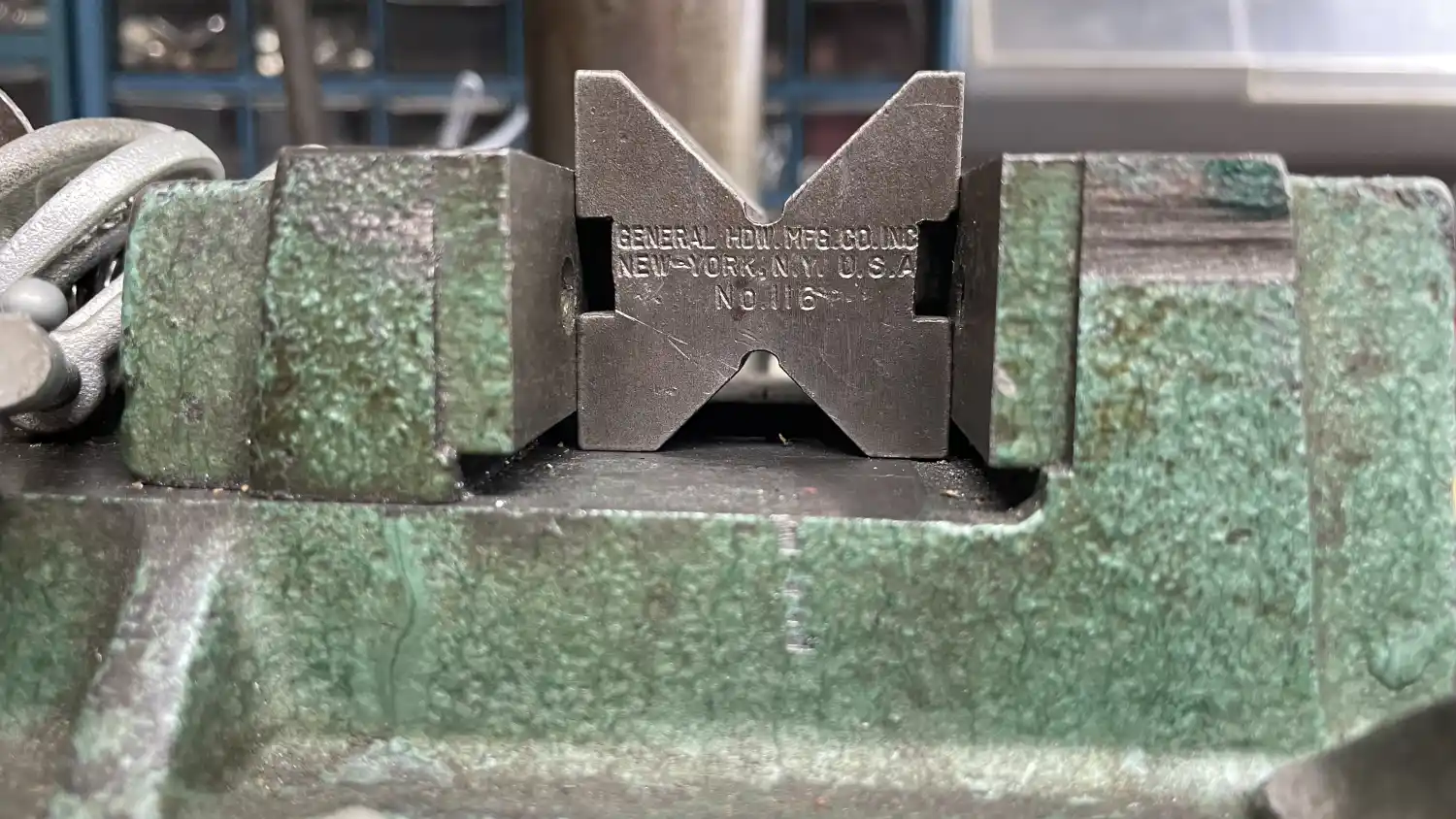

Picture of vise with V notch.
1. Why do some vises have that?
2. Not great for using parallels.

Thoughts for making something to allow use of parallels for milling.
Will be making small mounts for optics and other precision items, like metal bridges for string instruments, motor bike parts/mods, etc etc.

Might drill thru the rear block, from the back, make a metal plate, with counterbores, that is wider than the V notch and bolt it on when necessary.

Thicker parallels are an option, but they are not often used, like a parachute. 🙄

Thx
PP



[Colin the Bear]

I thought it was for holding round stuff.



[PiccoloPirate]

The bigger vise is a Toolmaker's vise, and the V slots in the movable jaw, is for holding small round stock.



[PigSquealer]

Nice work ! 🤩



[mark_addy]

You're not going to like this - but if it were mine and I wanted to do what you want to do, I might clean it up, fill the notch with Milliput (epoxy putty) and file it back smooth with a (very) blunt file. That stuff is hard enough to take the small load your paralell will put on it, and you can knock it out easly if you ever want rid of it.

I filled a load of holes with that stuff in an arc across the table on my pillar drill, as one often finds especially when like mine it has been abused for a long time in a school. I could have taken it off and attempted to braze it; or drilled the holes through, tapped and screwed in plugs, or even made taper plugs - as it is, the surface is still flat a good few years on, and it took 15 mins.



[mark_addy]

...as to what it's there for - my understanding is that the rear jaw is (meant to be) bang-on perpendicular to the bottom of the base; the top of the base would hopefully be paralell to the bottom of the base; but you don't want any funny business in that bottom corner (bits of swarf, for instance) to mess up that 90° when the job goes in there. Hence the cut-away notch. Yeah, yeah, we all keep an old paintbush handy and sweep out all the swarf every time... 😳



[PiccoloPirate]

^^^^
Thanks.
I did fill a groove like that on a different vise.
That allowed me to fit a fixture to hold the work above the vise jaws, and use a router bit with a top or bottom bearing.

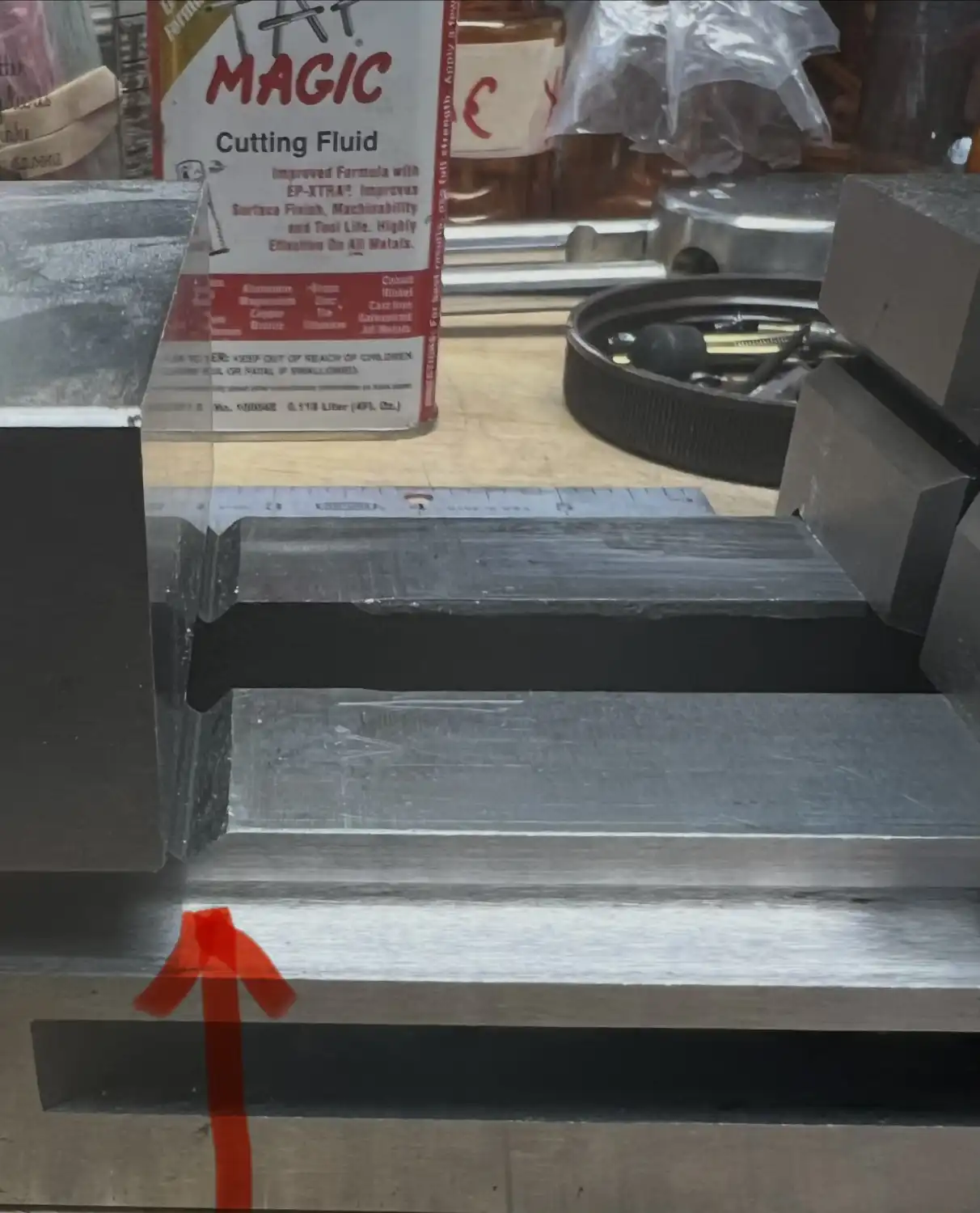

Was again looking for a reason for that notch, in the base, and found this:
The notch is cut so that when the base is leveled, the grinding tool can make sure the base is flat along it's entire length, including that corner.

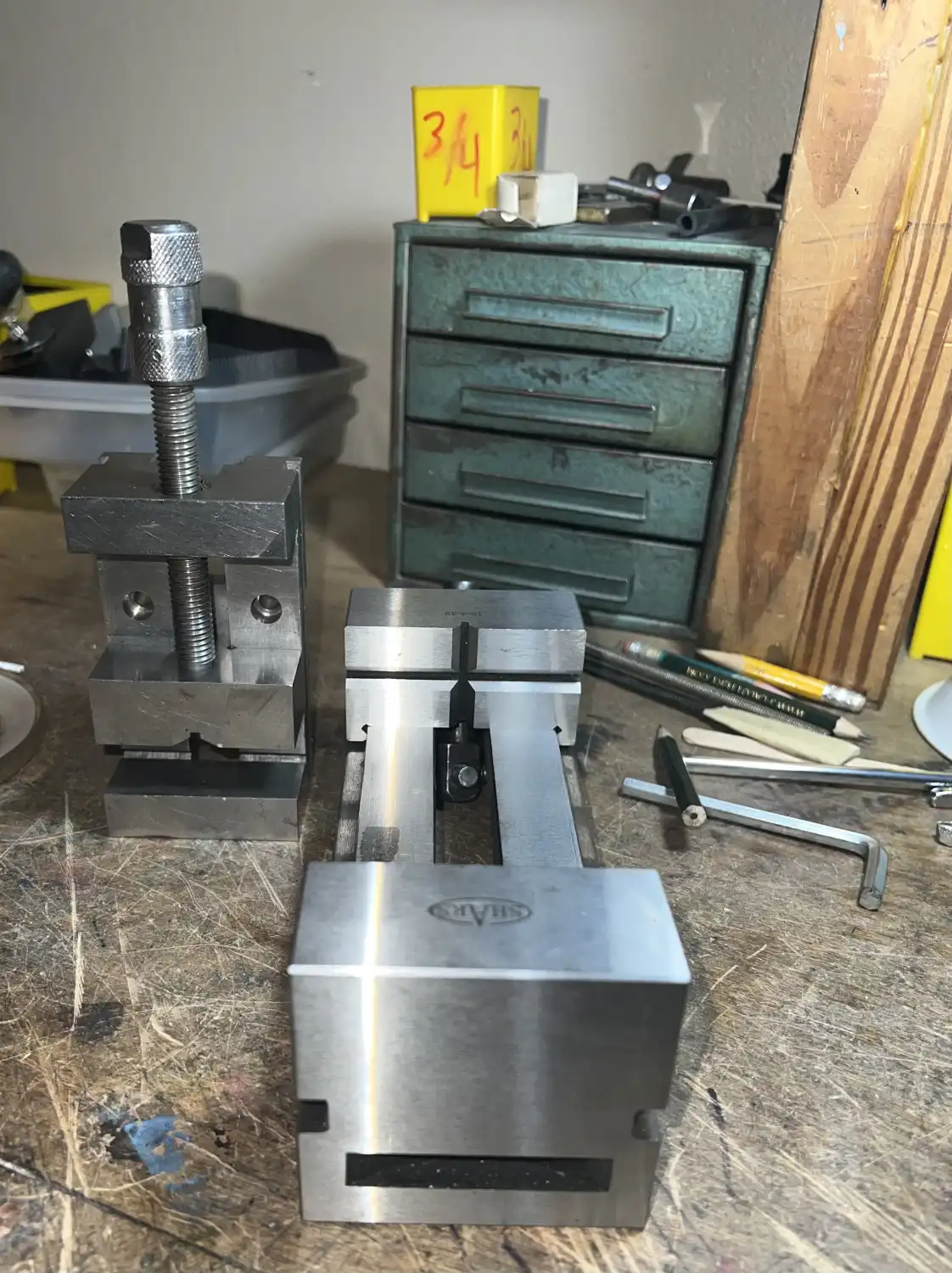

The little vise in the above picture, was made by a tool maker, and when I drilled the counterbore holes, for mounting to the mill, it ate up carbide drills and mills.
He must have hardened it to RC800. 😜
