Saxophones Pork Tales: Saxophone Repair DIY Adventures.

Life around the barn.
Tales from a pig that likes to stick his nose into everything.

Paint that S. How difficult could it be ?


1) Search the net.
2) Find the color.
3) Order color.
4) Study task on University of YouTube, aka; For destruction by DYI presented by pro tech.





Do the cleaning & prep.


Paint and cleanup / detail the edges with hard cotton swabs. Sounds easy……:confused:


Yeah tha guy Matt makes it look easy.
Anyone remember your first experience cooking bacon crispy while still in the frying pan !

Ah, I see. I actually do something different; I just number 'em, 1,2 3,4, etc. then I have the paper with sizes for each key cup - this way I don't get wrapped around the axle of "what's the NAME of that key?" Of course, normally it's extremely clear which pad fits which cup, but sometimes there are a couple that are close. But I do like the idea of just writing the actual pad dimension you ordered, in the cup for which you ordered it. Next time I may just do that, and eliminate the piece of paper. (I do pad replacements infrequently, like maybe every couple of years, and a complete re-pad maybe every 10 years, so I don't have a pad inventory.)
I know what the name of every part is. So should every player. The reason for post #1,169- 1,171.
Parents spend 8 years on lessons and the player can’t name more than five parts. Neck, body, mouthpiece and case.
I had a second year college student majoring in music on sax. He sent me a picture with G# key circled. “My professor stuck a lightbulb in and says this thingy has a ? Leak??”. 🤦‍♂️🤦‍♂️🤦‍♂️

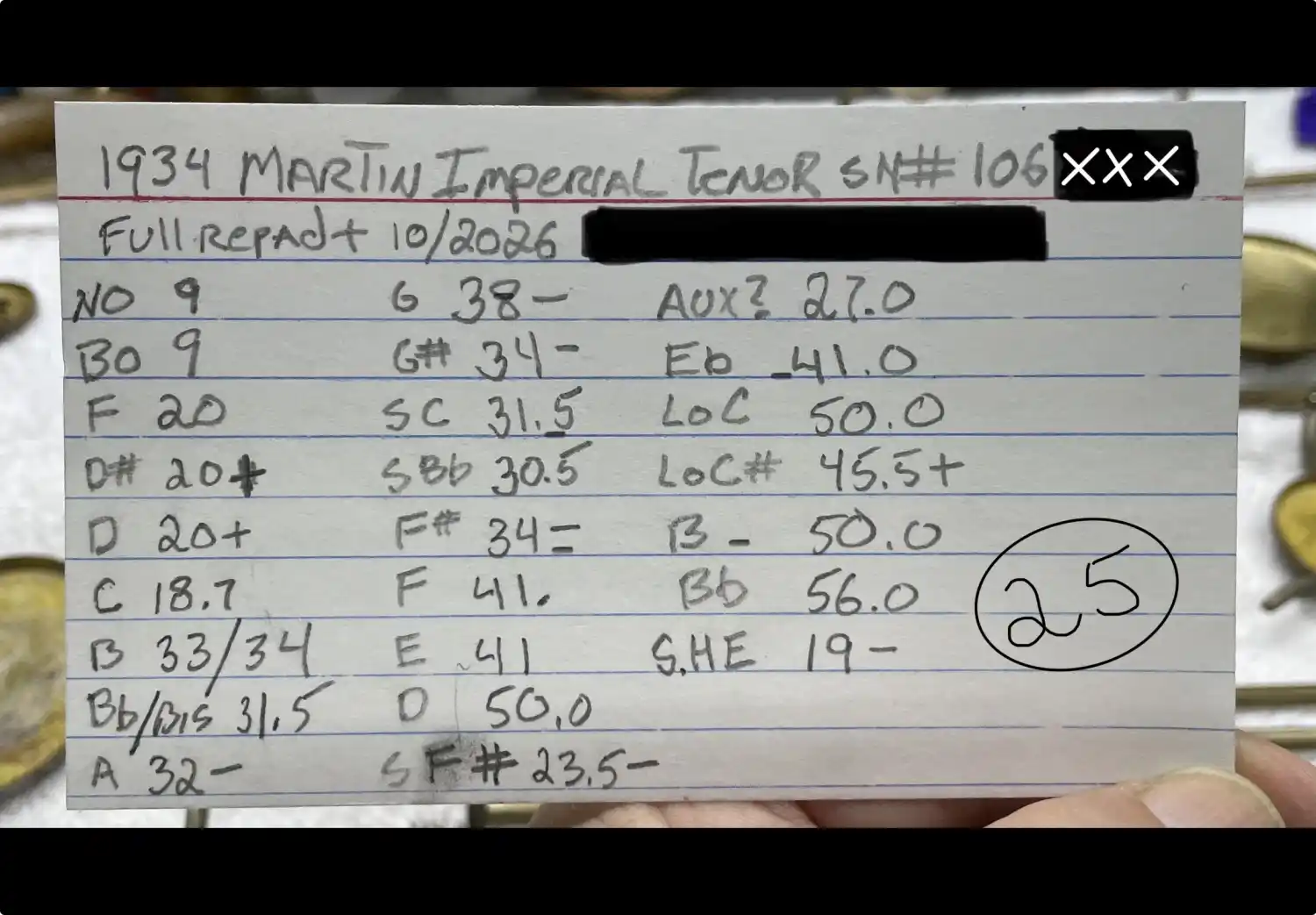

I record the sizes for the customer and my personal data. If I don’t have in stock I know what to order.
It’s not the easiest to measure an assembled horn should one be damaged during its lifetime.
B @ 33-34, the cup needed additional rounding for best fit.

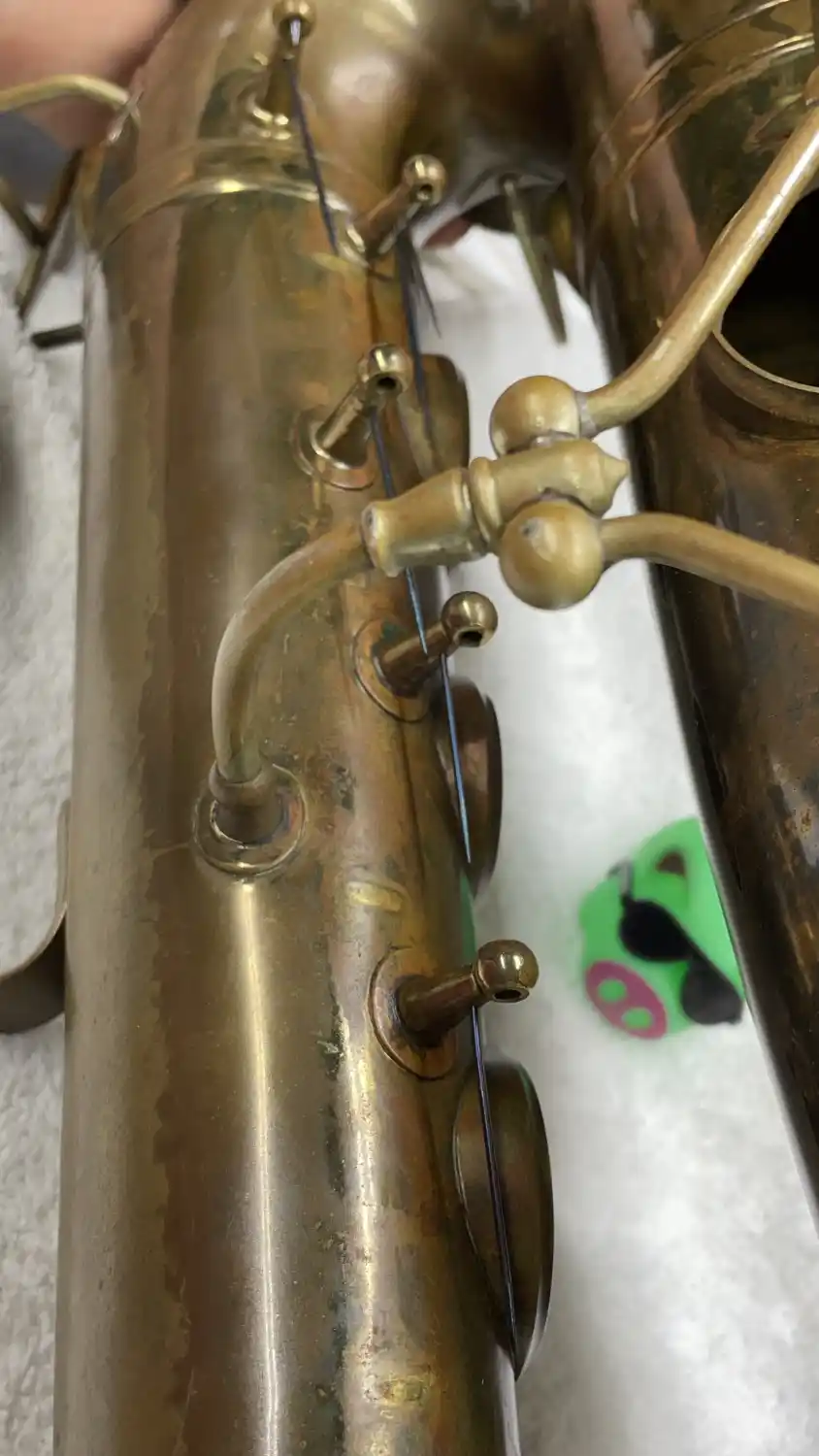

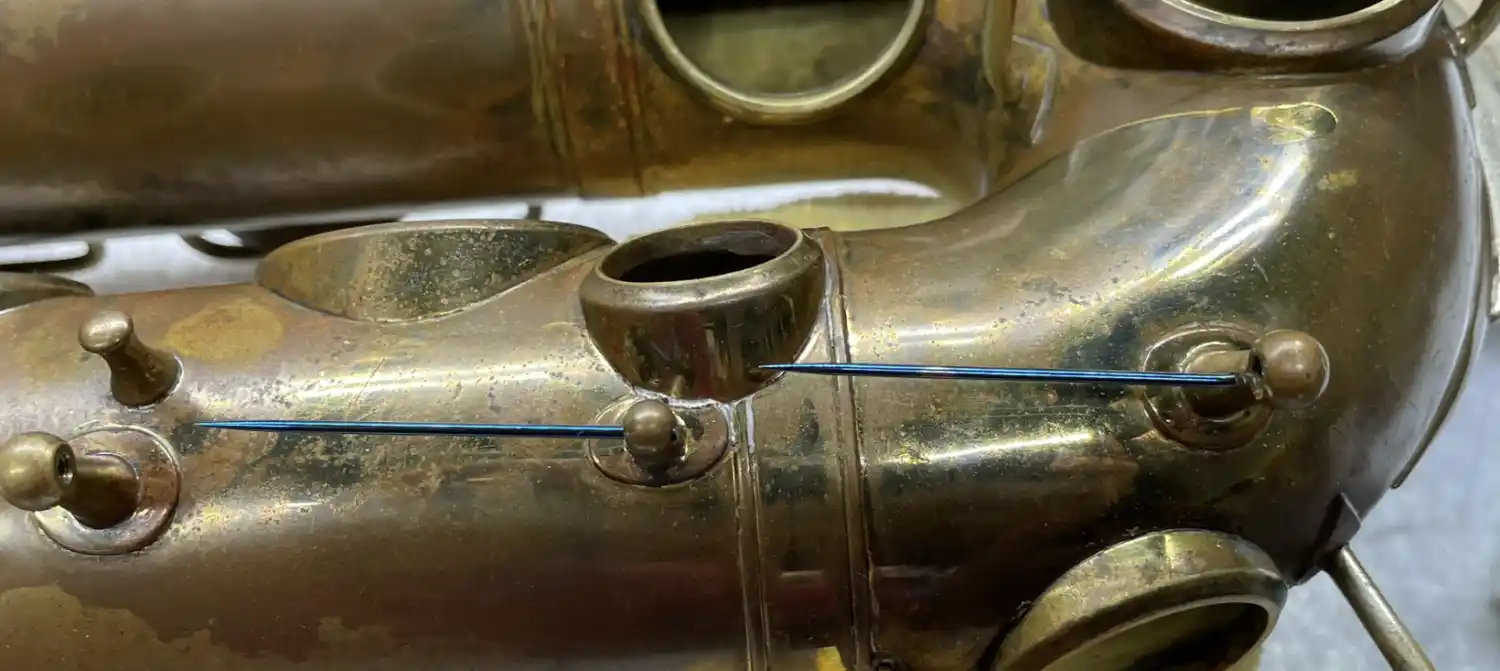

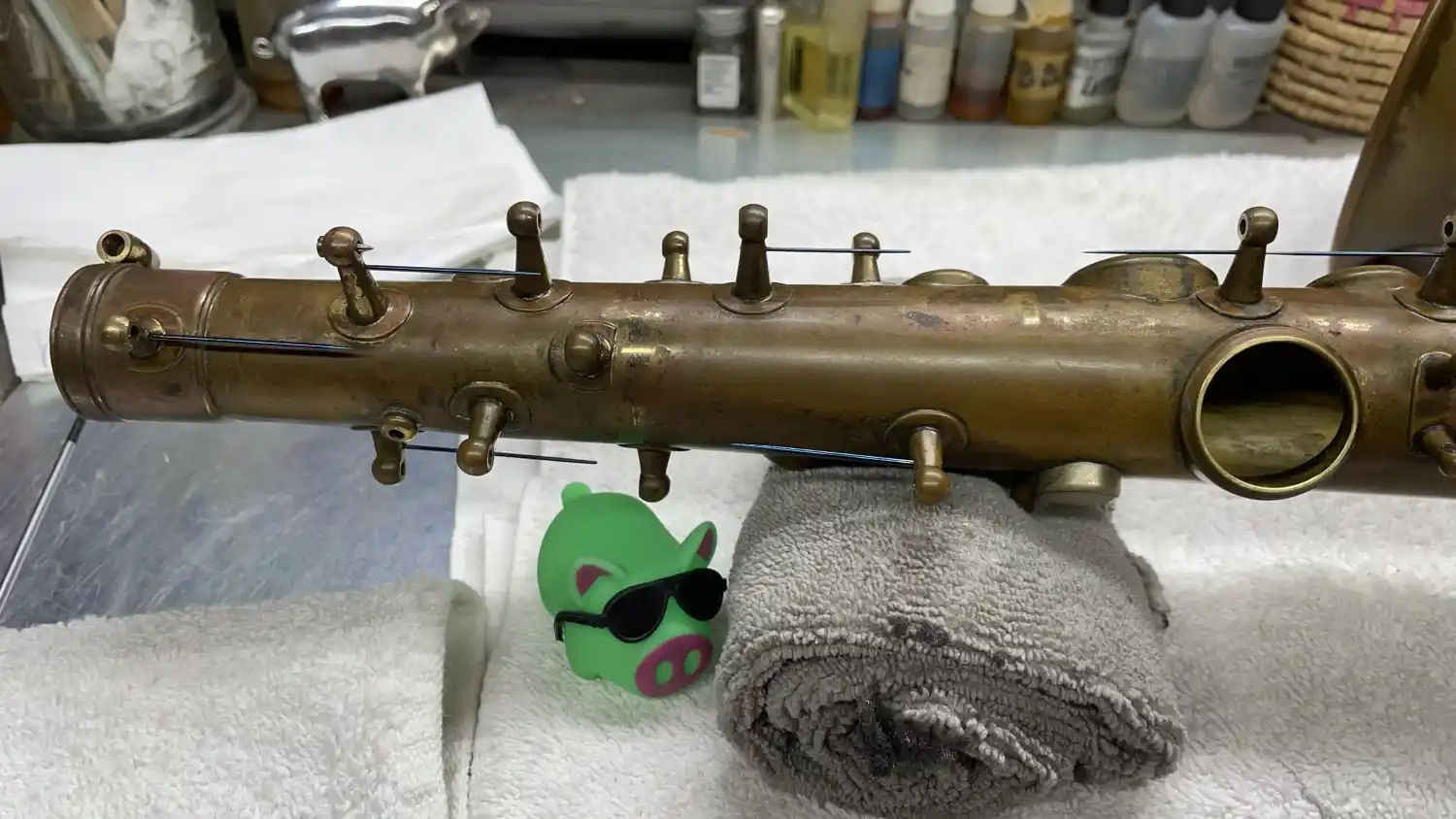

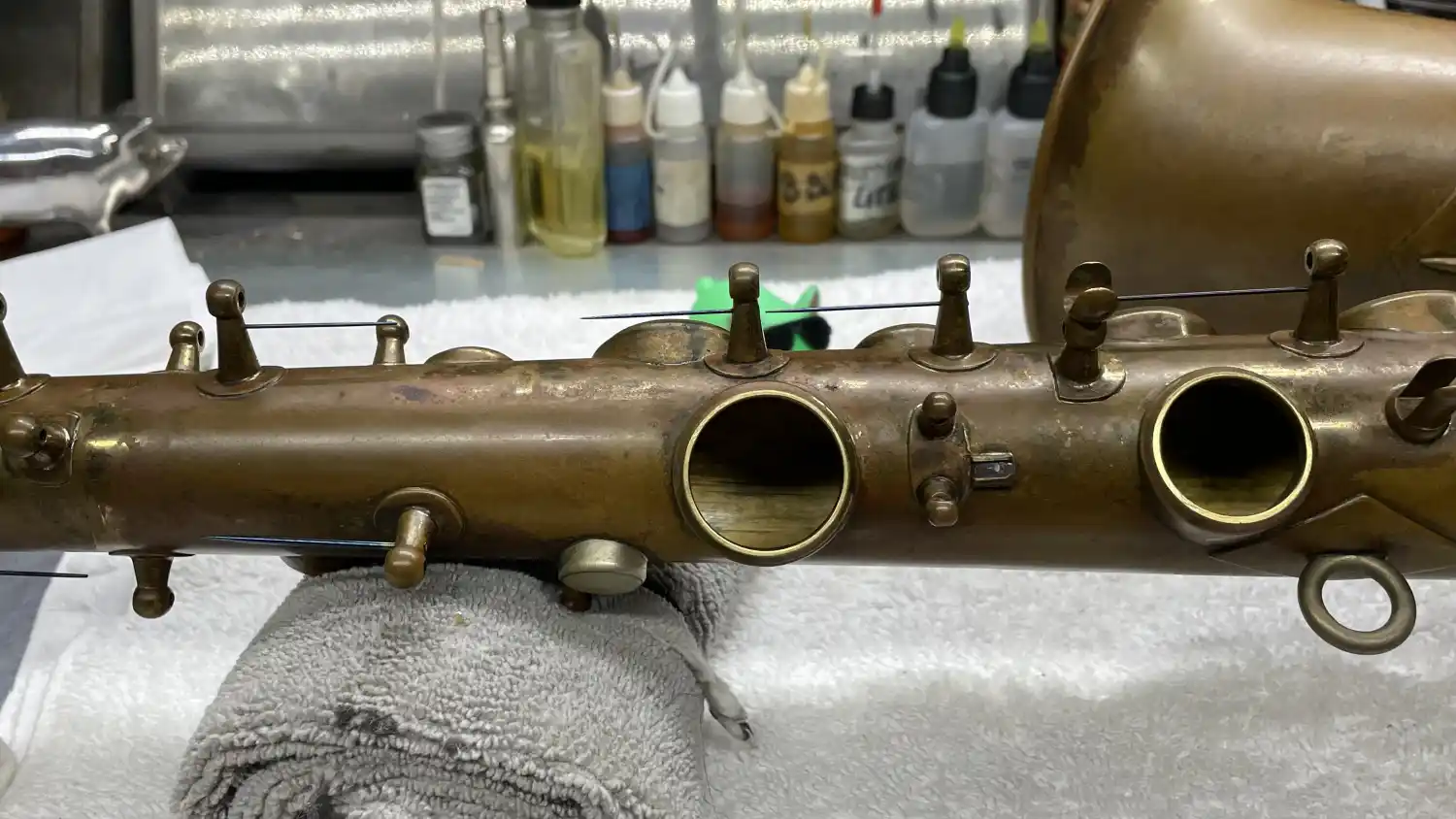

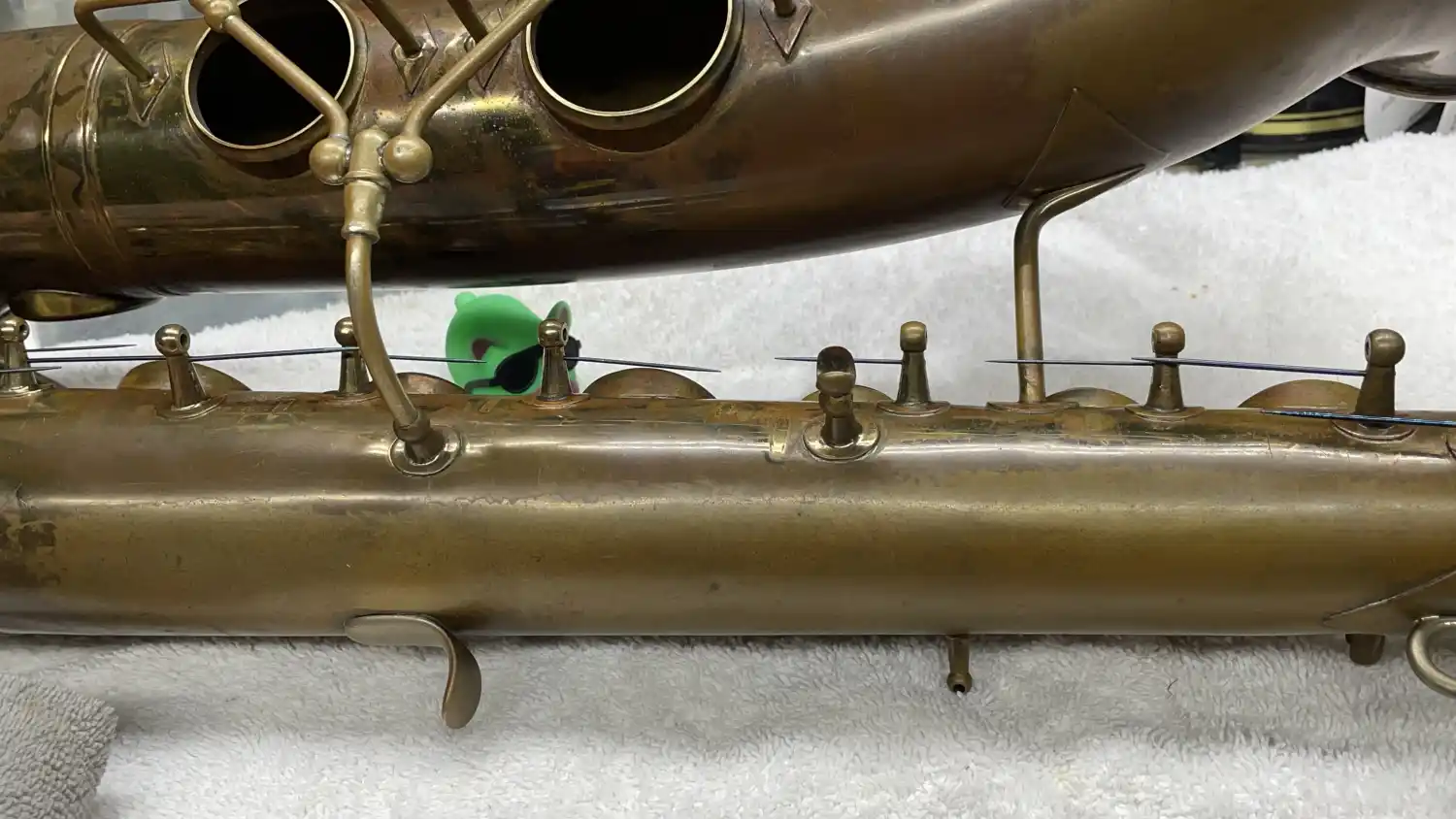

The key position marking was for my backup picture. Not all the flat springs are the same. Whatever this photo record shows is the way they came off.

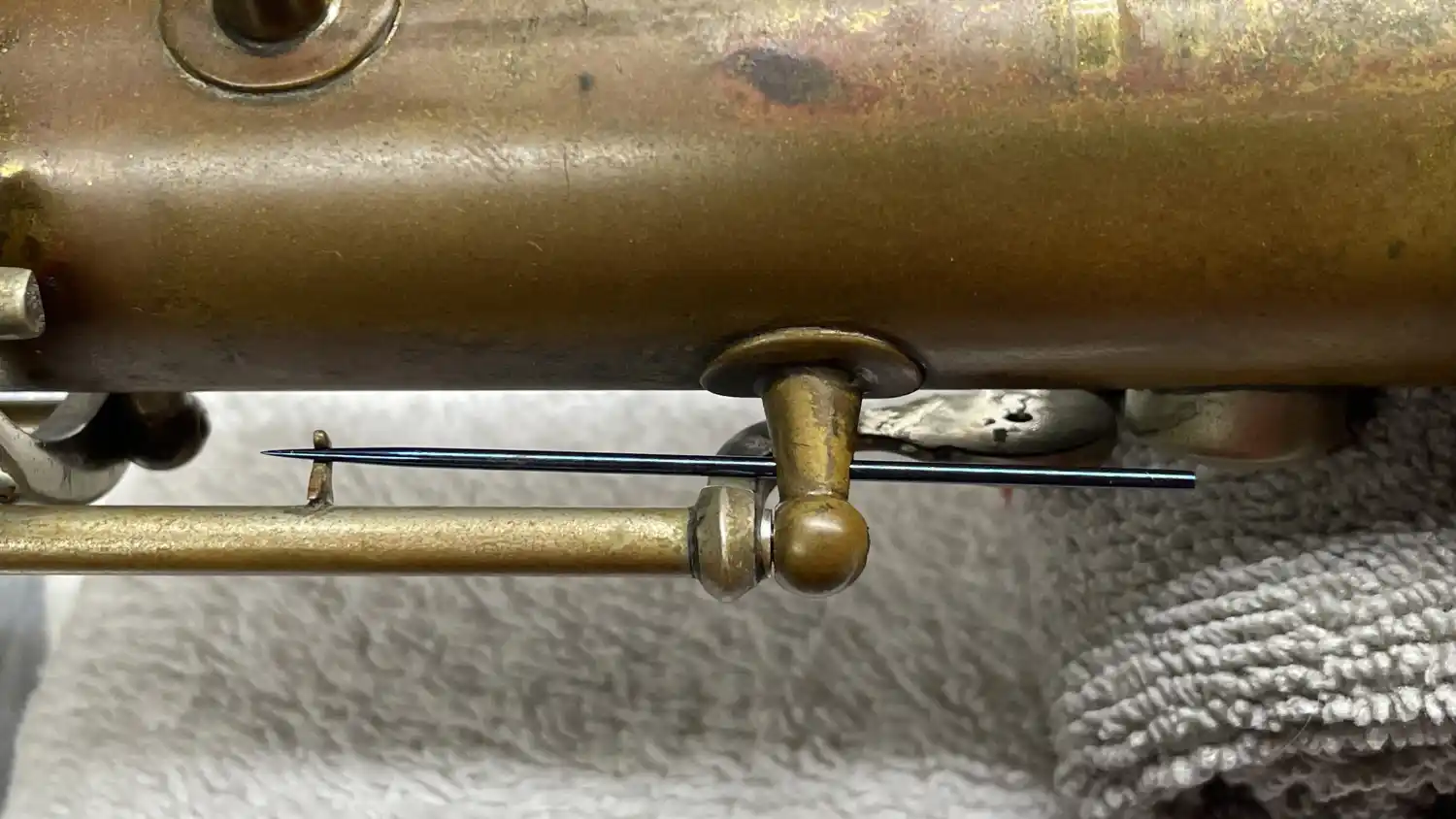

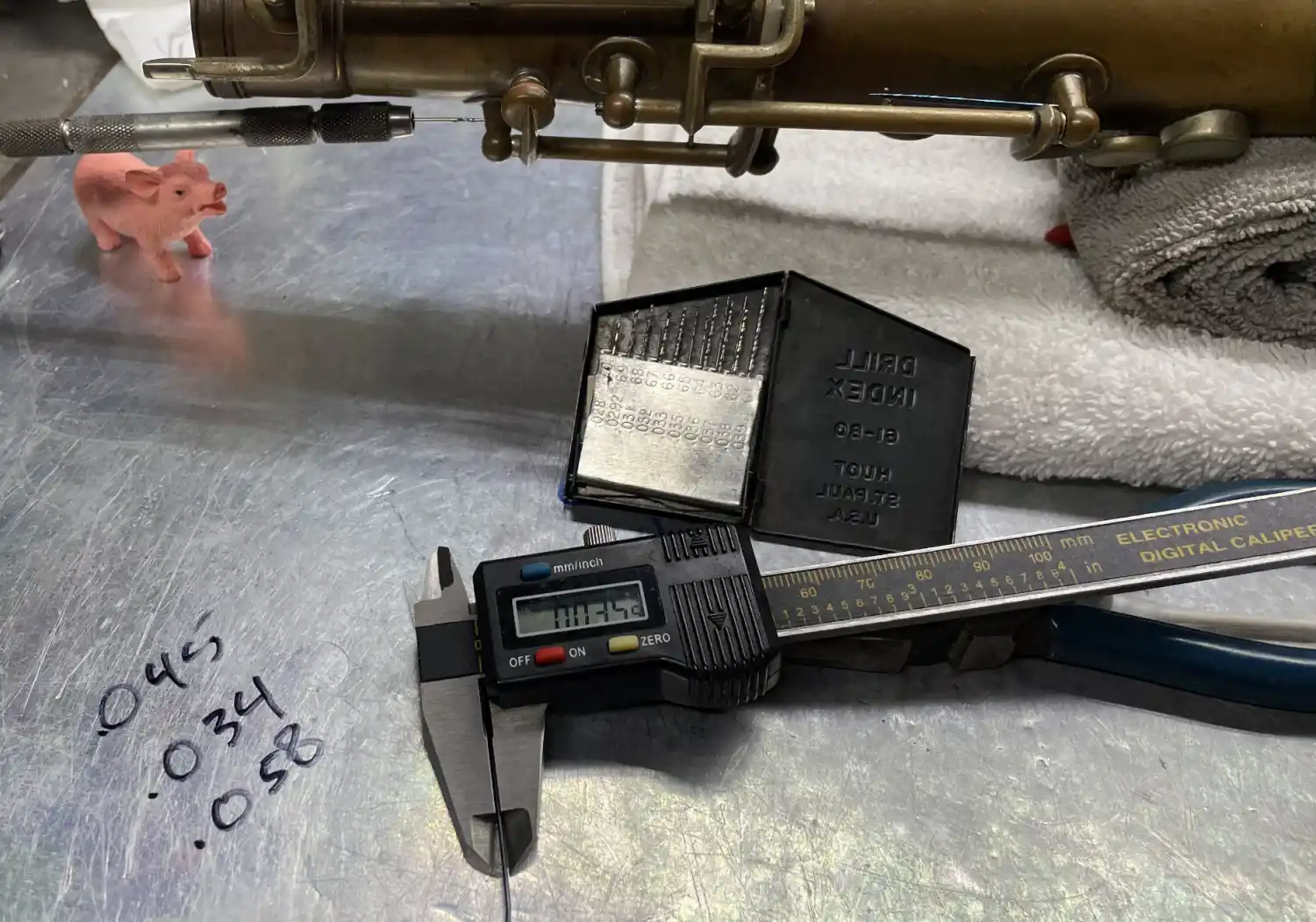

@Stephen Howard would you bend a 1.5mm /.058 spring 45° in a pillar ? Below 1mm is no problem. It just seems like that would be a bit rough on the pillar hole ?
You can certainly try 🙂 but as you say, after 1mm dia. it gets a bit tough going.
You'll be unlikely to do the pillar hole any damage but tugging on one end of a large spring to put a bend in it might be risky if the solder under the pillar is only just about hanging on.
What I do is reach for a pair of smooth-jawed pliers and just give the spring a bit of a kink. At this sort of diameter you're unlikely to break a spring because they're rarely, if ever, all that stressed in operation.
I think I just do it out of force of habit.

That's a very good price. The only one which didn't last for me, was holding the 5/8" or 3/4" (?) shank of a *large* rotabroach hollow cutter (a machine whose chuck uses grub screws against flats to stop the cutter spinning in the chuck...) in a Bridgeport, which goes a lot slower than our Rotabroach machine. I got the job done, but we had to cough up for a new collet afterwards! I think the torque reaction when drilling and turning the small objects you intend, will be minimal... 🙂

That's a very good price. The only one which didn't last for me, was holding the 5/8" or 3/4" (?) shank of a *large* rotabroach hollow cutter (a machine whose chuck uses grub screws against flats to stop the cutter spinning in the chuck...) in a Bridgeport, which goes a lot slower than our Rotabroach machine. I got the job done, but we had to cough up for a new collet afterwards! I think the torque reaction when drilling and turning the small objects you intend, will be minimal... 🙂

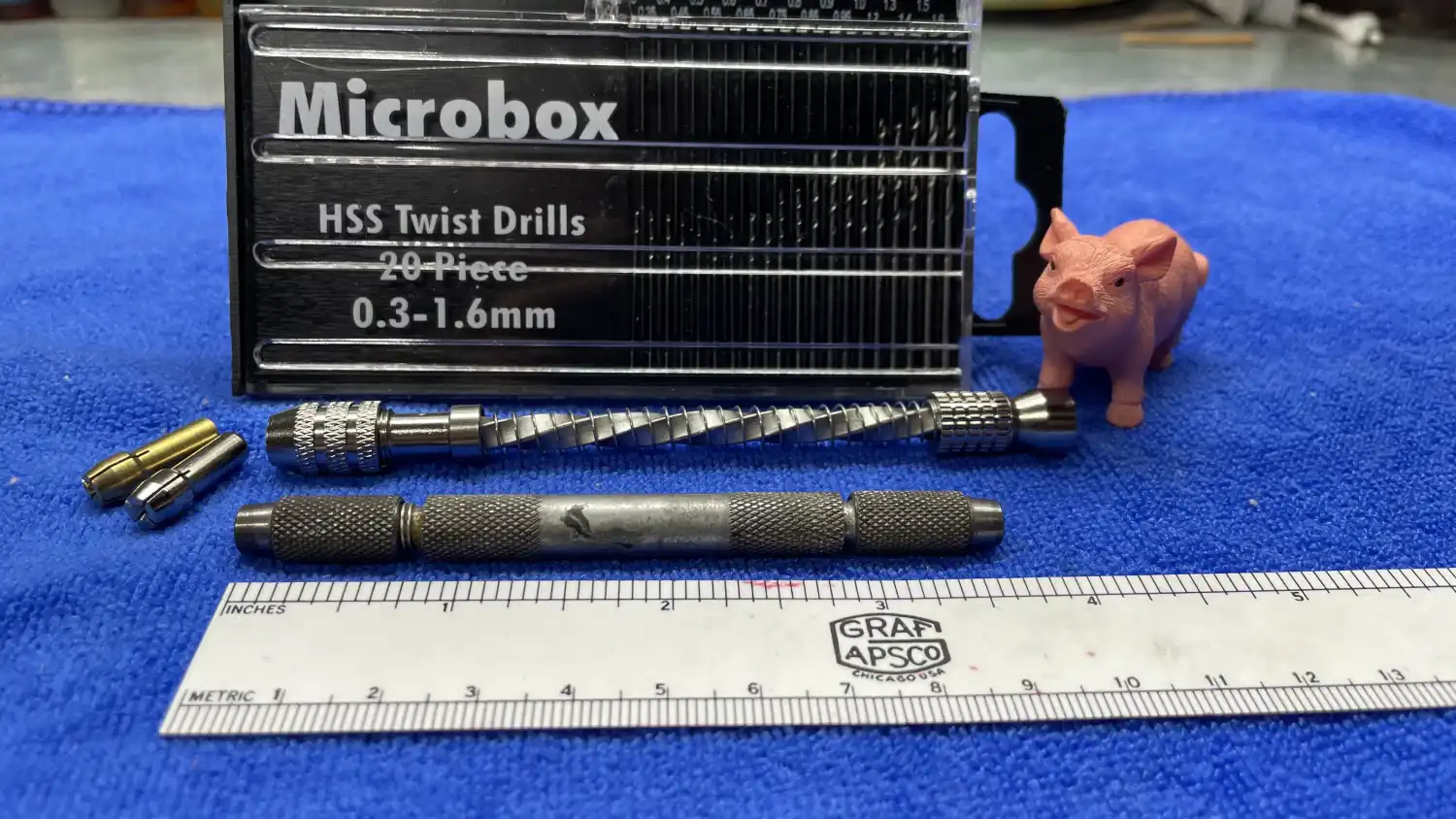

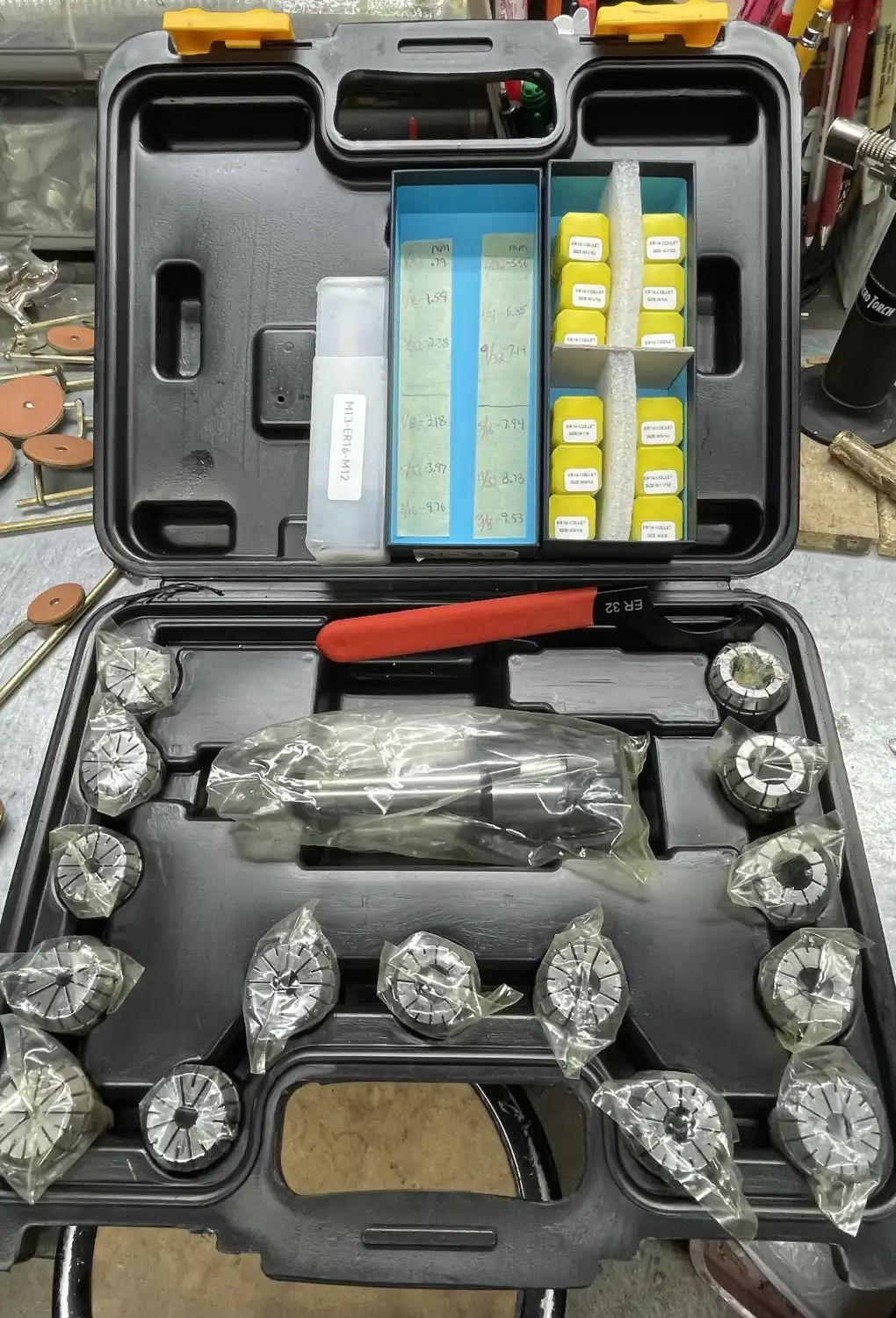

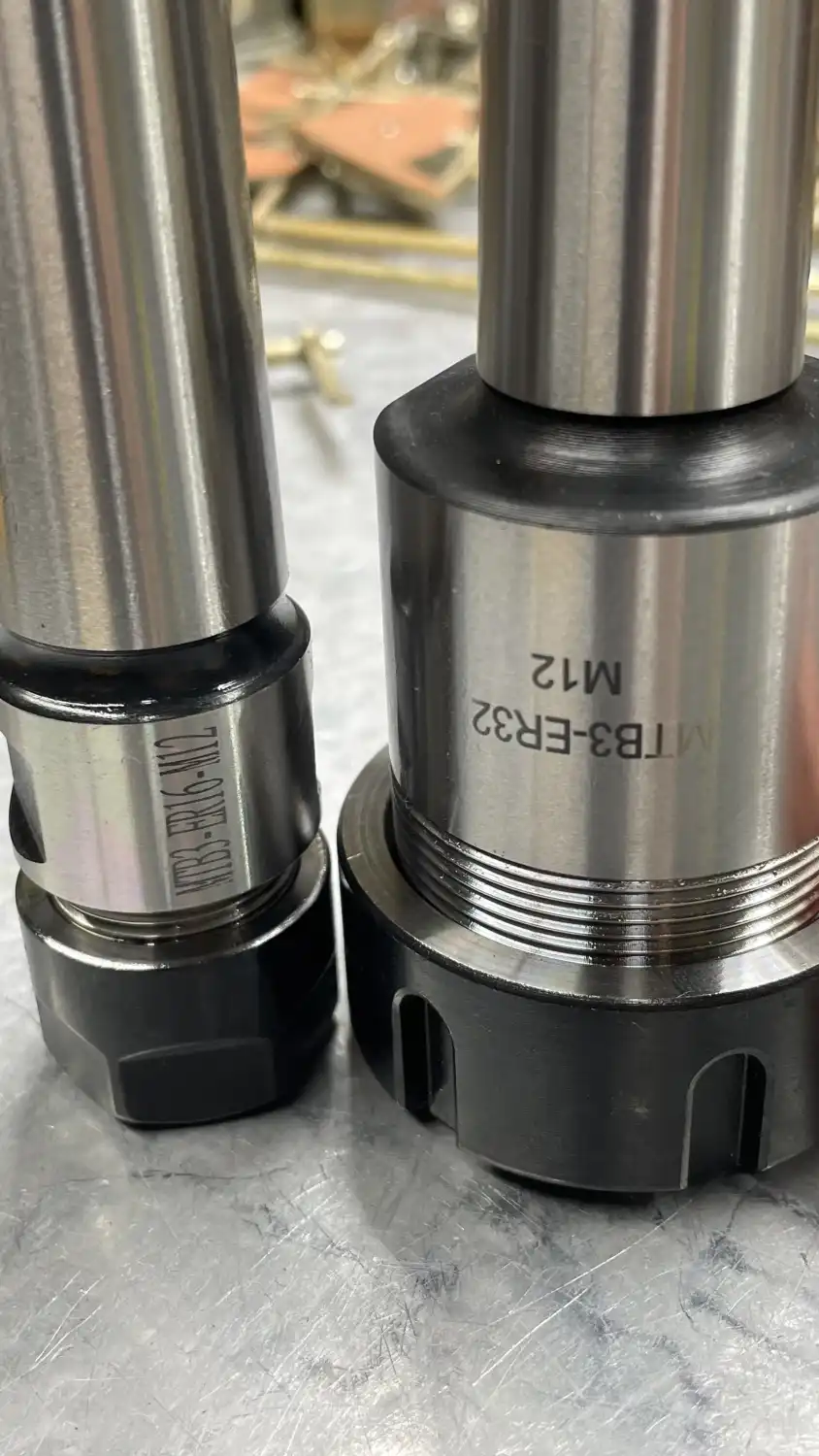

27 collets, two holders, one storage box and a spanner for under $60 delivered including tax was worth the chance.
I’ll just be attentive to have a cup, flack jacket and face shield on. Cheap isn’t always safe.
Anything that big (5/8”-3/4”) I’ll just use the 3 jaw chuck. Besides it’s a belt drive monster. It will quit spinning before a tool breaks 🤣. Still with a cutter proper to the metal stock it will make a .010” / 0,254 cut.
It’s the high carbon steel it doesn’t like. Brass, aluminum, cast iron, mild steel and the 01 hinge rod material are no problem.

Yeah, I’ve trashed a few tools to get a job done. Grub screws on a flat are the worst. Especially when some genius misses the flat and scores the shaft 🤦‍♂️😤

Still waiting for my 4”-4 jaw backing plate. On order but not arriving till mid November. At $36 I can wait a month.

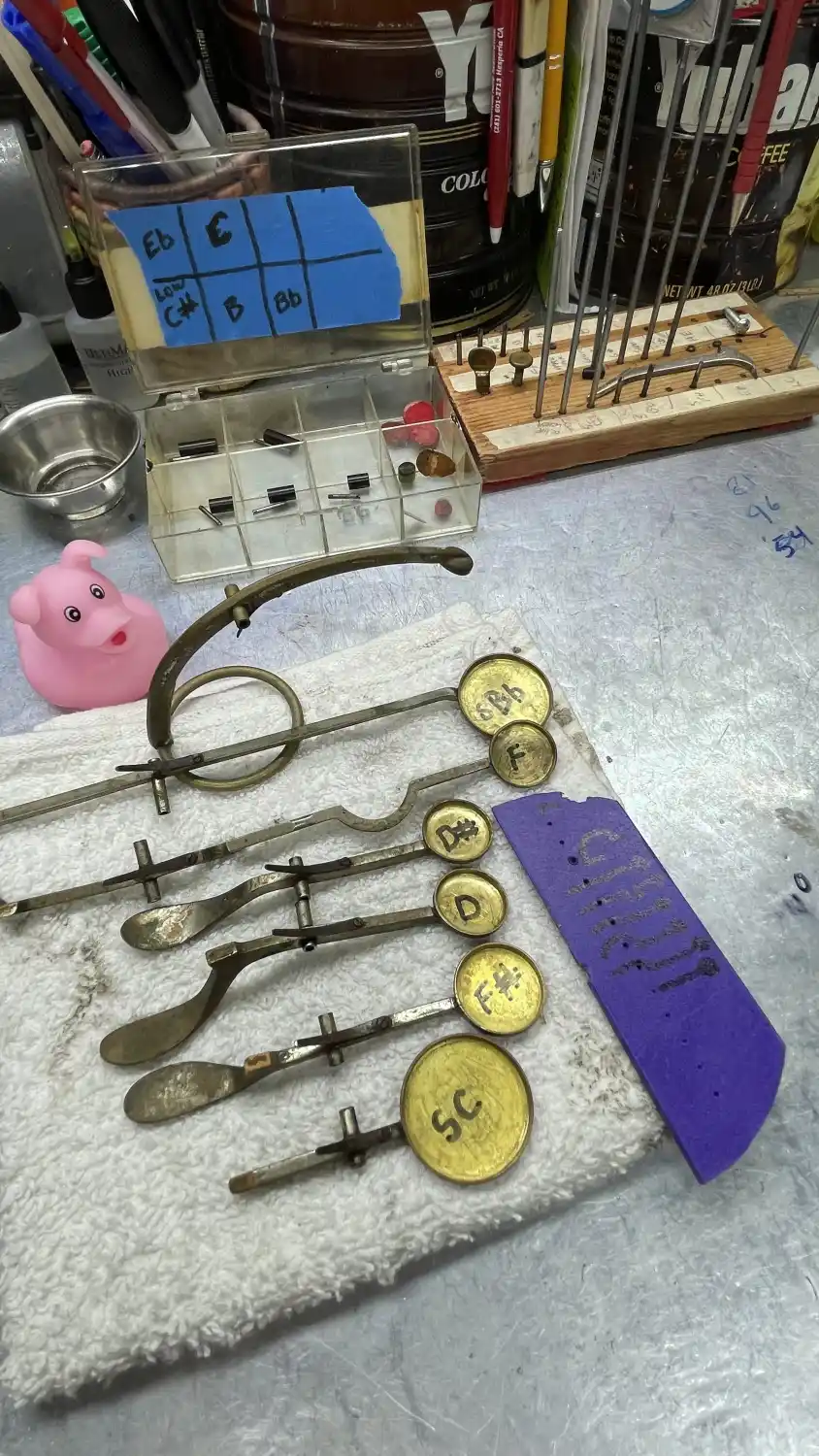

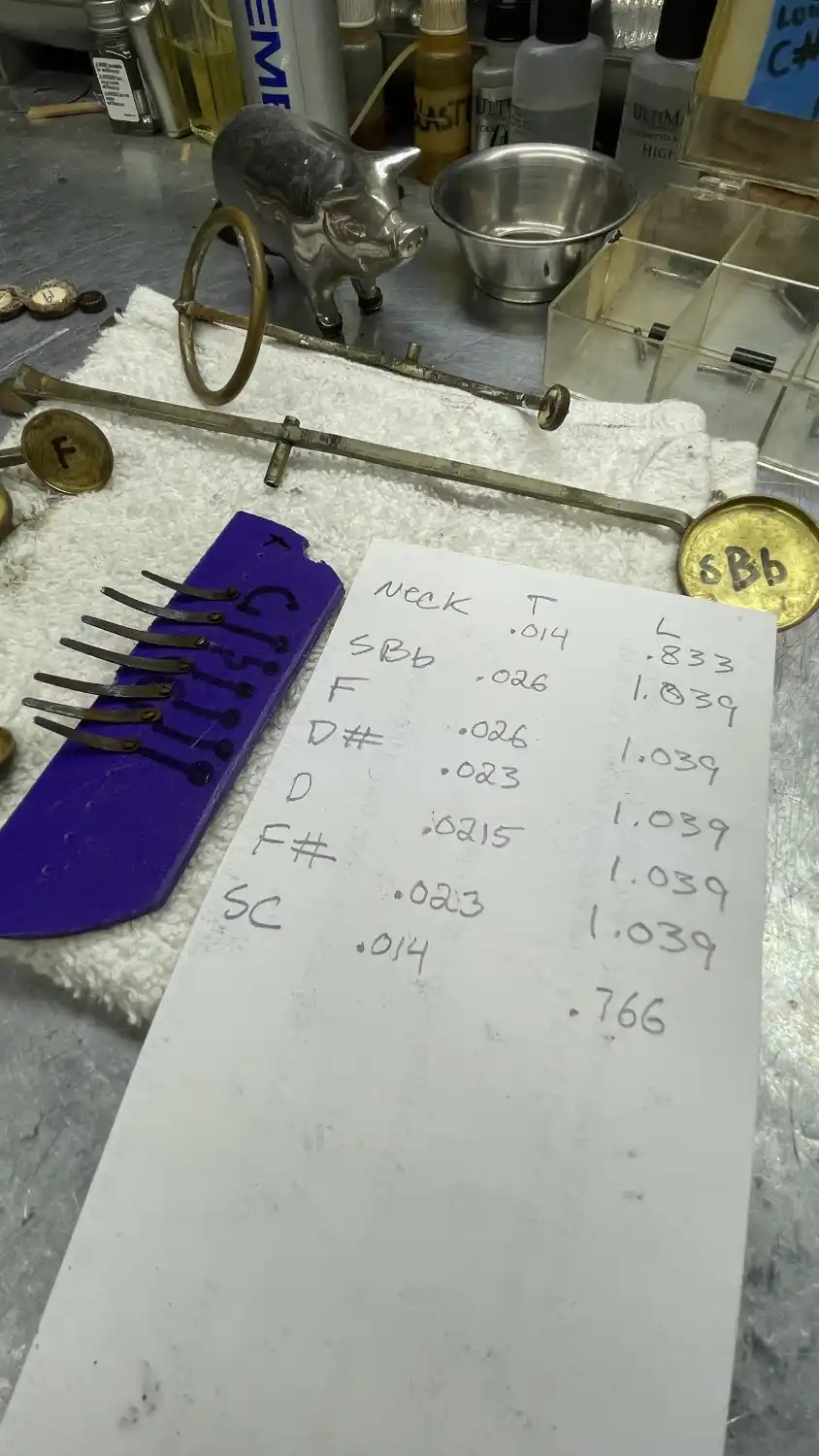

Flat springs are done too. I’ve added a little bit of angle to the tips.
View attachment 38235View attachment 38236
I may have missed it - did you cut them out of a sheet of flat spring steel, or did they come pre-formed? For very off topic reasons I have some (1mm?) spring steel offcuts, and I kept them because I thought I might need to make one or two of these one day. I imagined cutting them out of the sheet with a skinny disk on an angle grinder.

I may have missed it - did you cut them out of a sheet of flat spring steel, or did they come pre-formed? For very off topic reasons I have some (1mm?) spring steel offcuts, and I kept them because I thought I might need to make one or two of these one day. I imagined cutting them out of the sheet with a skinny disk on an angle grinder.
Purchased at supply company. Fit/ shape / arc as needed and not much of that.
@1mm are you planning on springing a 747 jumbo jet 🤯

I’m not a full Cowboy yet. I still have all my marbles 🤠
Do you know how Cowboys are made ??
Presumably the same as cowgirls.
From a mummy cowgirl and a daddy cowboy meeting maybe at a rodeo and several months later calling the vet.
Which, as I am currently watching All Creatures Great and Small, seems to involve him stripping to the waist using a great deal of warm water and soap, attaching a rope and after a lot of effort the farmer says ‘that were well done vet’n’ry tha’ll be needing a cup of tea now’.

Presumably the same as cowgirls.
From a mummy cowgirl and a daddy cowboy meeting maybe at a rodeo and several months later calling the vet.
Which, as I am currently watching All Creatures Great and Small, seems to involve him stripping to the waist using a great deal of warm water and soap, attaching a rope and after a lot of effort the farmer says ‘that were well done vet’n’ry tha’ll be needing a cup of tea now’.
As the line goes, about one nickname for the come along: "if you don't know why they call it a calf puller, you don't want to know".

To become a full cowboy or cowgirl one needs to loose all their marbles. Each applicant starts with a mouth full of marbles. Each time the prospect rides a bucking bronco or bull and falls off. They spit one marble out. When they’ve lost all their marbles the certificate is awarded. Honestly the toughest people on the planet.

Looking at it, it seems the new part has come out more blue and shiny while the old part (the tube) is more brown and not that shiny.

What I have done in the past to get a brown color on brass is to use ammonia. Specifically, I suspended the part in question in a bucket over half a cup or so of plain old household ammonia cleaner, and watched it every couple hours; when it got the color I wanted, I took it out, washed it thoroughly with soap and water, and (in the case of what I was doing) sprayed it with lacquer.

Your project there is more challenging in that the new part is attached to the brown part. I think if you were to ammonia-fume the whole neck, you'd end up with the tube near black. Might be worth seeing if actually applying household ammonia cleaner to the sheet brass will darken it. (You've got all the scrap sheet to test with). I can't imagine how you could effectively mask off that neck tube from ammonia vapors.
IIRC there was a thread at the other place warning about the use of ammonia. Something about ammonia causing brass to fracture / crack. @Dr G am I remembering correctly ?

To become a full cowboy or cowgirl one needs to loose all their marbles. Each applicant starts with a mouth full of marbles. Each time the prospect rides a bucking bronco or bull and falls off. They spit one marble out. When they’ve lost all their marbles the certificate is awarded. Honestly the toughest people on the planet.
If they were that tough they wouldn’t fall off.
