Tech/maintenance Low C# foot cork on 1926 TrueTone alto?

bobstad

Member
Messages
71
Location
Bellingham, WA
Hello,

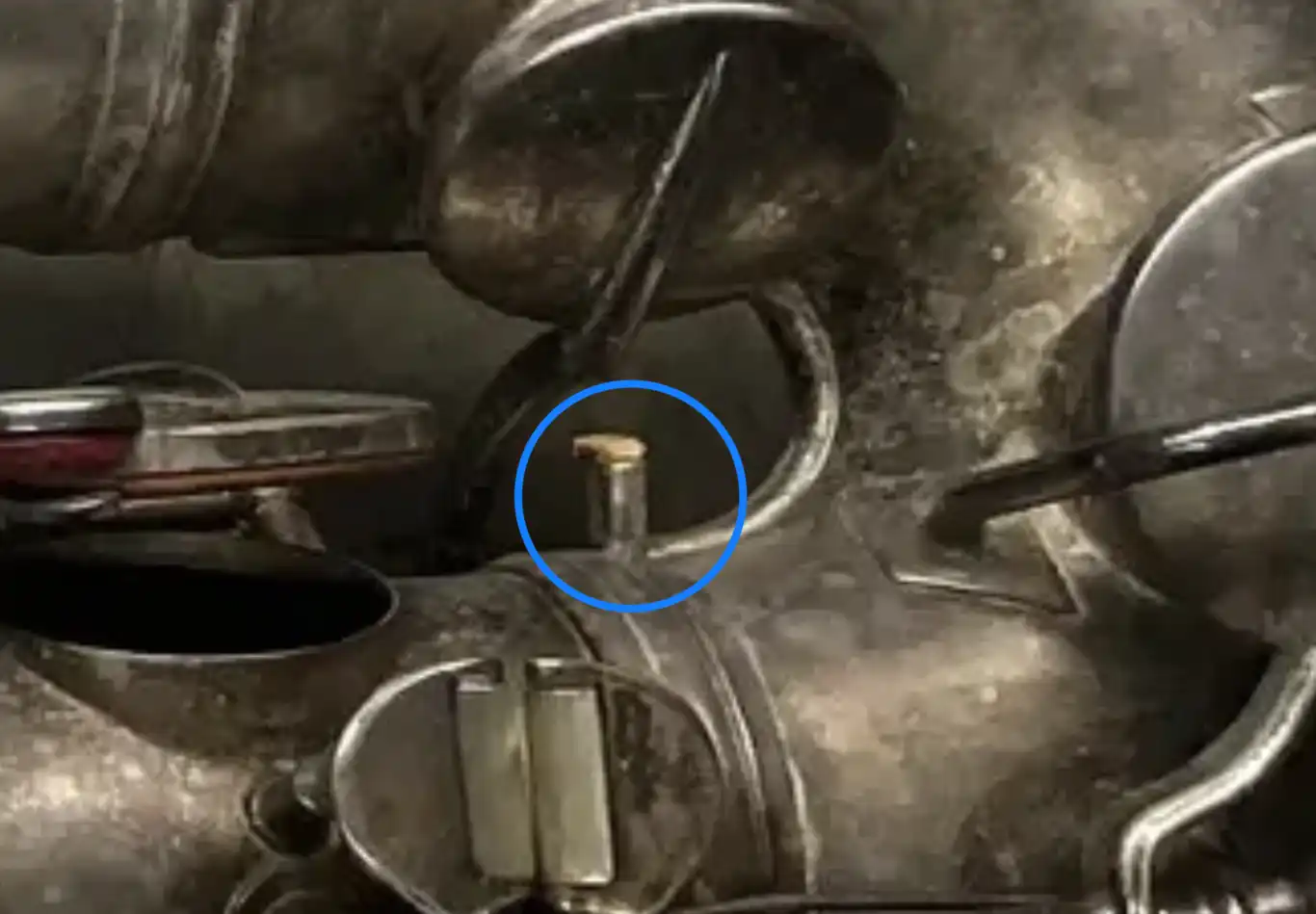

I need the cork for the foot of the low-C mechanism on a 1926 Buescher TrueTone alto saxophone.

This is a round item about half the diameter of a the tip of a pool cue, an 1/8" or so thick. There is a round surface at the end of a short perpendicular to the rod from the low-C touchpiece, the cork glues to.

The cork itself stops against the body of the sax, about where the bow attaches to the main body of the saxophone.

I looked at the Allied Musical Instrument Repair website, though they seem set up to serve commercial customers only.

Buy a bottle of wine, extract the cork, use a sharp knife to shape it to a small circle while enjoying wine.

Or buy a piece of sheet cork from Music Medic or the hardware store use a sharp knife to cut to the desired shape, attach with contact cement.

Hello,

I need the cork for the foot of the low-C mechanism on a 1926 Buescher TrueTone alto saxophone.

This is a round item about half the diameter of a the tip of a pool cue, an 1/8" or so thick. There is a round surface at the end of a short perpendicular to the rod from the low-C touchpiece, the cork glues to.

The cork itself stops against the body of the sax, about where the bow attaches to the main body of the saxophone.

I looked at the Allied Musical Instrument Repair website, though they seem set up to serve commercial customers only.
The cork attaches to the key side.
Music Medic has small assortment.

I guess you have to know the limits of your dexterity. I am not going to cut myself using a knife to shape a piece of cork while drinking wine. But I've been working with my hands and using knives since before I went to school. A man's got to know his limits.

I'd round a piece of cork or makeshift sub with a file and/or an abrasive, just marking a circle on one side while using a plastic vernier calipers if I can find them or similar, to get my diameter from low-C.

If I use gel superglue am I forever cursed?

The only attraction to gel superglue is a person can get a small quantity.

During 2022 I divested myself of mechanic type stuff for life [ I'm 74 ] so don't feature a logistical loggerhead miscreant, being welcomed aboard.

The open sores of being mechanically oriented: 'fasteners' generally.

What's the least complex, as well as available in modest quantity? Locktite?

Shellac? Like the stick kind to use installing pads?

I have used that, [ and even lost a supply divesting.. ] which thinking, ought to be just about my best option in spades, no?

Thanks for help "thinking out loud".
Yes the shellac used for pads. Old school way was to dissolve the shellac in denatured alcohol. lightly brush on area. Attach cork and let the alcohol evaporate. If you can remove the key and have a mini torch. Just quickly heat the location and dab the hot melt glue or shellac on. (HMG mini sticks $6-$8/ bag. Shellac $12 stick.) Then quickly add the cork. Heat needs to be pinpointed and 130°+ HMG, about 160° shellac. Hence the glue stick robbed from neighbor and hot butter knife / tool.
Option, contact cement small tube. $4 Dap/Weldwood from hardware store or $8 Permatex #25905 from auto parts store. Tube will last several years if stored in cool place.
A small chance clear fingernail may stick ? Dunno 🤷.

Wonderful!

I could use try to reuse the odd improvisation with a synthetic material, instead of cork; which simply fell off just days after receipt of the restored instrument.

This looks like porous core closed cell plastic with a thin, hard sheeny surface-tacked in place with some small amount of adhesive on the body of the sax.

Instead of on that perpendicular foot at the bottom of the long low-C rod with a round ending, the round cork is normally attached to.

The instrument was part of a large backlog of work, with the tech from the fall of 2023 until finally finished last month April of 2026.

One helpful koan from Carlo Cennamo [ who did a restoration for me of a near identical TrueTone during 2014 for $1350 cash when the normal price was $2,000 www.cennamowoodwinds.com ] is that: "inexpensive work done well takes time, while good work done quickly may be more pricey..inexpensive work done quickly, may be poorly done."

The second restoration was only $450, but for the odd low-C fix an immaculate rendering of an instrument, in brand new condition once completed.

Just as an aside here: I created a surprisingly fine home made case for $2 with a pair of 99 cent cedar fencing slat seconds.

First, using a fine, sharp crosscut saw, I cut one of the two slats into three pieces each exactly the same length as the other. Then using a pair of gallon tin cans as temporary spacers to determine an arbitrary width, I built a three sided wooden box about two feet long; with the tin cans between two slat pieces, to determine the distance between them, and the third slat piece on the bottom between the two other slat pieces..with wooden squares on each end, to hold the sides & bottom together.

My idea was a flower box for my apartment's kitchen window, [ built during the 1880s as part of a local brewery's horse facility, my land lady's family got in 1954 ] though some serendipitous impulse got me to try putting the TrueTone in the flower box.

This stunningly to me, had what machinists call a 'spring fit' so that I soon made a lid with improvised handles on top and one end, made from chunks of 1" x 2" fir about 4" long crossing over holes made using a smaller size tin can as a template.

What was totally priceless, is once the improvised case was finished; I found a $5 Scandinavian military surplus duffel bag that fit over the flower box sax case as snug as a condom. The brass grommets for the duffel's drawstring, closing exactly above the handle on the top of case, easy to grasp and carry that way.

During 2016 given to some Sinti neighbors, a young blond woman ended up with, proudly. I hope they think to line the case with something..Bert Wilson suggested leather..since apparently the cedar reacts with the sax's finish that's gold-plate. From an ad during 1997 in the Berkeley Flea Market Want Ads newspaper, a freebe there published twice monthly, with sidewalk stands downtown.

Interestingly I disassembled the sax soon after purchase, and using a fine copper bristle brush I shined up the saxophone, fully never reasoning this wouldn't of worked on a a lacquer finish. The second TrueTone the seller thought bronze, due patina of 100 years.

Contact cement is really the best choice. There is a reason it is the default choice. It comes in smallish tubes; not miniscule like superglue, but standard size (2 oz?) I understand the desire to divest oneself of a surfeit rarely used tools, but a tube of glue is not expensive, and will probably last a year or two after being opened.

The most common brand of contact cement in the US is Weldwood - something like $10 for the smallest can that'll dry up long before you use it all. I can't find the little bottles any more. There's no reason to try a variety of weirdo kluges, just go to the nearest hardware store and buy this.
